Shell-And-Tube Condenser

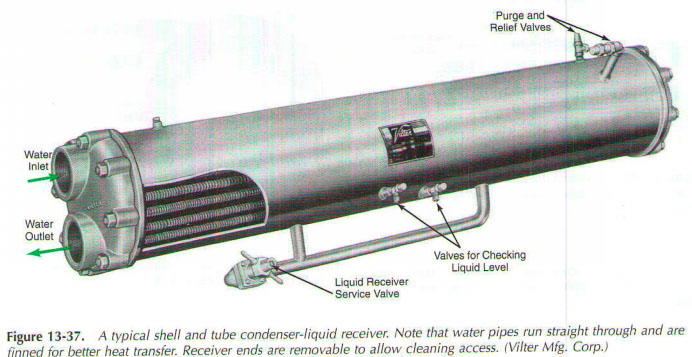

Shell-and-tube condensers cylinder, usually made of steel with copper tubes inside. The water flows through the pipes, hot vapour condensation in a cylinder liquid. In the lower part of the casing serves as a liquid receiver.
