Evaporators

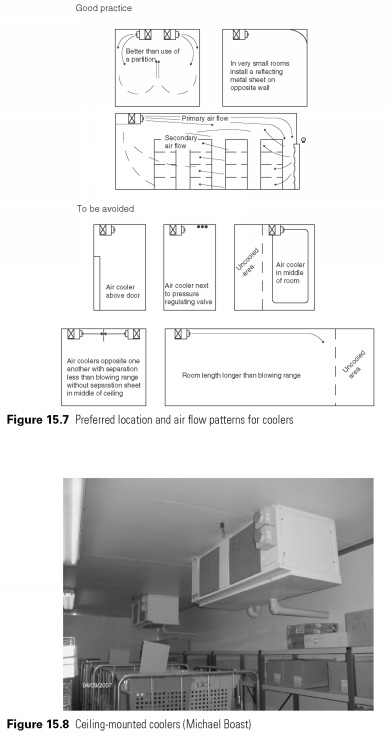

On the ceiling of evaporators (see Fig. 15.8) shall be located so that to ensure good air flow (see Fig. 15.7). Modern refrigerators when fitted with a short sock can achieve air emits 80 m without excessive speed, using coander effect.

Thanks to the weight, evaporators, must be supported from the exterior structural roof using couplers, passing through isolation. Access passages may be necessary in the roof void to facilitate maintenance and inspection of piping, fittings and insulation.
