To Minimize The Penetration Of Heat - Select The Right Insulation

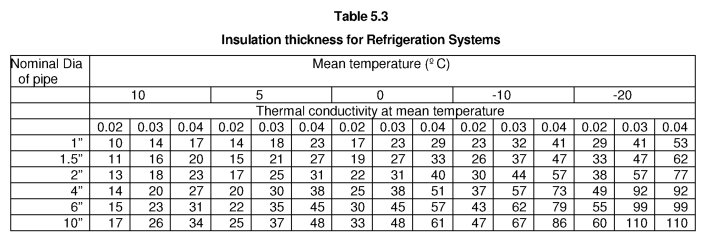

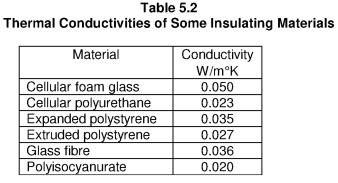

Make sure that the location of the plant is selected to ensure minimal heat loss pipelines, insulation and issues associated with the hot air from entering the Coldroom adequately address to reduce extraneous thermal load to a minimum. Main properties of heat-insulating materials are suitability for working temperature, heat, vapor permeability and moisture absorption. Tables 5.1 and 5.3 contains information to help you choose the correct insulation of appropriate thickness.
In addition to the launch of the pipe, flexible insulation should be used for box flanges, valves and pumps. Prefabricated day installation HVAC ducting system for commercial applications also offers dual design. Pumps, refrigerators, etc. must also be well insulated.
In the case of refrigerated warehouses, polyethylene sheet of sufficient thickness should be placed on the floor as a vapour barrier, before laying the insulation. All seams shall be lapped and stitched together, and we should continue under the wall panels.
All forecasts and loose stones in the sub-floor should be removed to avoid puncturing the vapour barrier.
A building with a huge load, air conditioning shall be provided insulation of walls and glass area should be kept to a minimum. Insulation of the building in the form of a double wall, with an air gap, double walls with thermal insulation or filled one wall modernization of gypsum with air gap and others should be considered .
 ..
|
