Air-cooled condenser are used on a commercial air conditioning

Every mechanical cooling systems have a capacitor, but, as we have seen, it is usually not a separate component. Shown here is an air cooled condenser (about 25 tons, which will be used in commercial air conditioning or refrigeration work. It is designed for installation in the system as a separate component in combination with capacitor product or private compressor and evaporator. In the residential market of this product is occasionally used for high-efficiency heat pump system, but it is very rare for cooling standard applications.

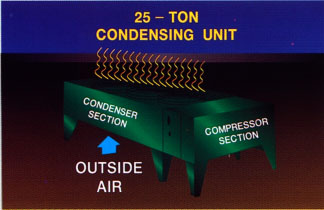

This 25-ton, air cooled commercial condensing unit uses the same condenser coil, that was just shown. You can see that the compressor compartment was added to the end of the condenser. This is done at the factory. This box also houses, pipelines, electrical wiring and controls necessary to make it work as a condensing unit.

It is intended for installation with air handler, as shown here, which includes the evaporator dosing device, a fan and a filter. This type split-system of popular commercial air conditioning work.

This is often used in commercial systems, capacitor, combined with a compressor, metering devices, evaporator, and all the necessary piping, wiring, and control, shipping, air-cooled air conditioning product like this 25-ton rooftop unit.

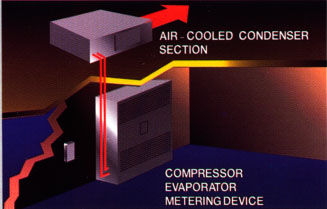

Here capacitor connected to the capacitor to the inner box, which includes a compressor, the evaporator, the metering device, fan, filters and the necessary wiring, piping and controls. Application of this type are used only on the commercial market.

Here capacitor shown a separate compressor and evaporator. Commercial comfort air conditioning of such systems, as a rule, are the exception rather than the rule. For residential work, they are practically absent. In all three types of products that we have discussed, capacitor, condensing unit and packaged air conditioner capacitor is present practically in the same form, and always performs the same function.

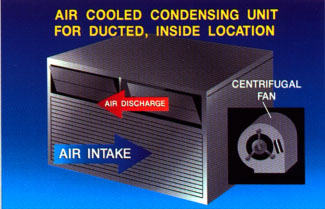

All products that are still with air-cooled condensers is intended for free discharge outdoors. Propeller (axial fans are used in such cases. Here condensing unit, which uses an air-cooled condenser with centrifugal fan. It is designed for indoor installation, duct connection of the condenser outside air. Centrifugal fan can compensate the loss of pressure in the pipeline system, while the propeller fan...
