Low-temperature tests
Test environment camera systems are used in a variety of industries, including automotive, consumer, pharmaceutical and aerospace industries. They are used in all industries, to test everything from semiconductors to refrigerators.
Sizes range from bench units get the cameras full walk and drive cameras rooms. In addition to temperature control they may include:
- Temperature and/or humidity modeling
- Solar modeling
- Vibration simulation
- Height simulation
- Wind simulation
- Simulated rain
- Sound attenuation

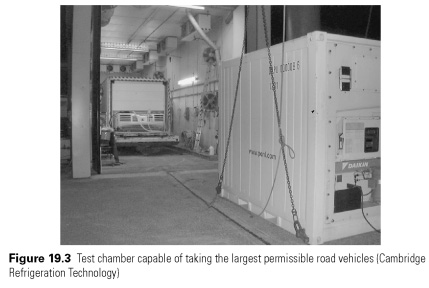

environmental chamber is suitable for testing of equipment to the size of reefer units shown in Fig. 19.3.
Mechanisms and electronics for the aerospace industry are tested at temperatures, which may prevail under the conditions of work. A typical specification can be test -70C. BioStore freezer rooms are designed for cold storage -75C to -40C. Where the component is large, it must be kept in a cold cell, which are capable of reaching this state. Fewer products are tested in Autonomous cabinets with the chamber the size of a large domestic refrigerator. Two-stage and three-stage system in use, with R23 in the cascade at the bottom end and R404A for the high stage(s)...
|
