The engines are Used for HVAC

As mentioned earlier, this type of motor is used as a fan motor in refrigerators and freezers, and some species of air conditioning equipment if the requirement is not too large. It can also be used as a part-time device to defrost timers, and a sequence of other operations.

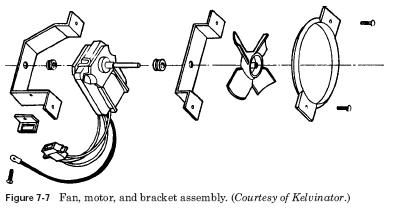

Fan and motor Assembly are for the position of the camera in the refrigerator, directly above the evaporator in the refrigerator. Suction-type fan pulls air through evaporator and blows it through the provisions of the air inside the dot and the freezing of the fan grille. Fig. 7-7 shows the shaded-pole motor with a molded plastic fan blades. The maximum circulation of air, location of the fan motor shaft is the most important. Mount the fan blades too far or too far forward on the motor shaft, in relation to cover the evaporator, will prevent the circulation of air. Freezer fan should be installed with the front edge of the fan in 1/4. in the front cover of the evaporator. The fan Assembly is shown in Fig. 7-8 used on the upper freezer, no-frost, fiberglass insulation model refrigerators. The freezer fan and motor Assembly is in the divider section directly under the freezer air duct.
